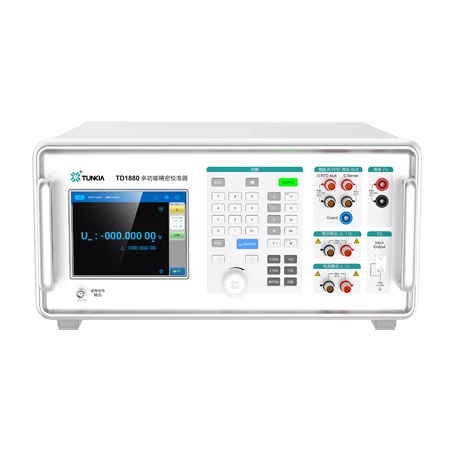

TD1880 Multifunction Calibrator

TD1880 Multifunction Calibrator

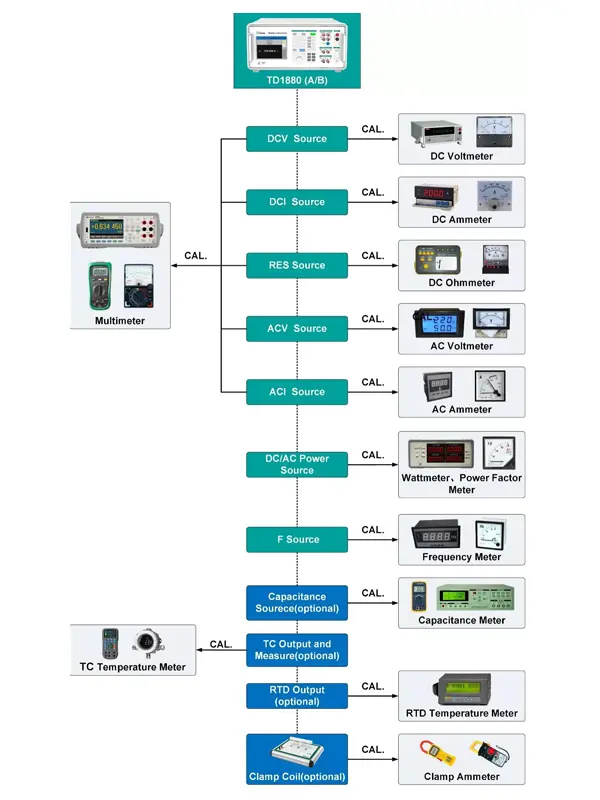

TD1880 is a high-precision, multifunction calibrator. It integrates AC/DC voltage source, AC/DC current source, and DC resistance source functions. It is used for the calibration of digital multimeters with 6.5 digits and below.

Manufacturer: TUNKIA

Origin: China

Category: Multifunction Calibrators

Request a Quote
Request a Quote
DC voltage output± (0 ~ 1020 V)
DC current output± (0 ~ 20.5 A)
AC voltage output1 mV ~ 1020 V
AC current output29 μA ~ 20.5 A
Sinusoidal wave frequency10 Hz ~ 500 kHz
Simulated DC resistance0 Ω ~ 1100 MΩ, continuously adjustable
Pulse frequency output2 MHz
Multifunction Calibrator
