TD1860 Multifunction Calibrator

TD1860 Multifunction Calibrator

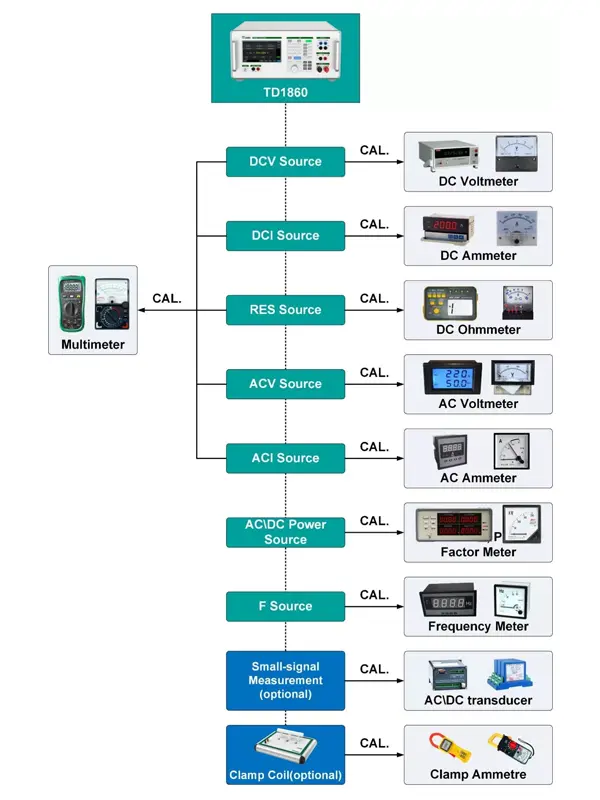

TD1860 is a high-precision, multifunction calibrator. It integrates AC/DC voltage source, AC/DC current source, and DC resistance source functions. It is used for the calibration of digital multimeters with 4.5 digits and below.

Manufacturer: TUNKIA

Origin: China

Category: Multifunction Calibrators

Request a Quote
Request a Quote
DC voltage output± (10 mV ~ 1100 V)
DC current output± (3 μA ~ 22 A) (33 A is optional)
AC voltage output3 mV ~ 1100 V
AC current output30 μA ~ 22 A (33 A is optional)
Sinusoidal wave frequency45 Hz ~ 1500 Hz
Simulated DC resistance0 Ω ~ 220 MΩ, continuously adjustable
Pulse frequency output2 MHz
Multifunction Calibrator
