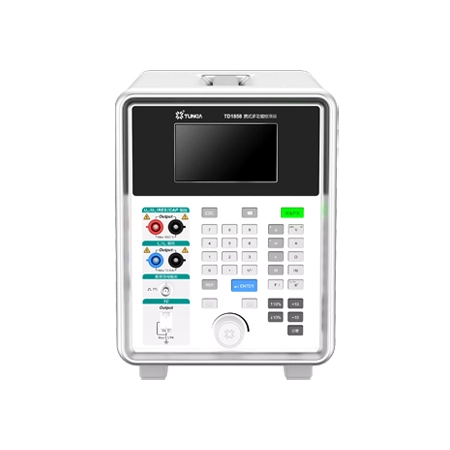

TD1858 Portable Multifunction Calibrator

TD1858 Portable Multifunction Calibrator

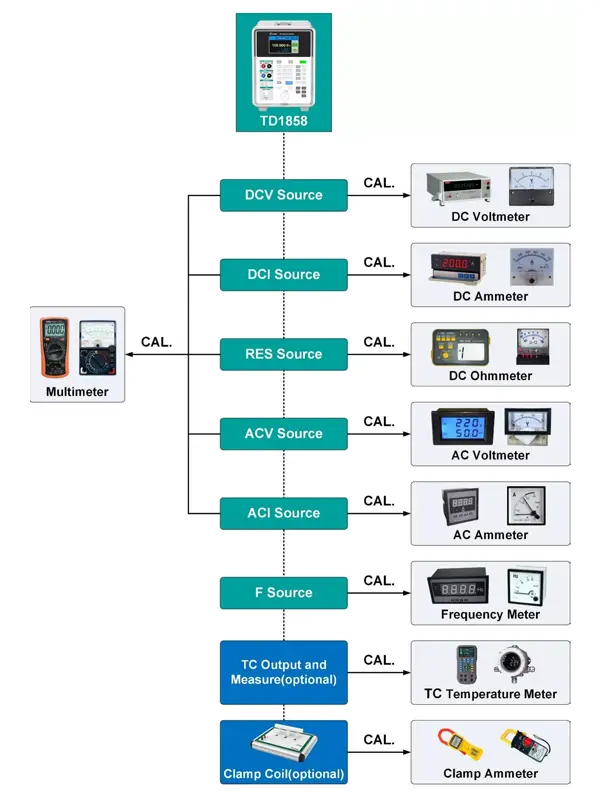

TD1858 is a high-precision, multifunction calibrator. It integrates AC/DC voltage source, AC/DC current source, and DC resistance source functions. It is used for the calibration of digital multimeters with 4.5 digits and below. The device is portable and highly suitable for on-site calibration.

Manufacturer: TUNKIA

Origin: China

Category: Multifunction Calibrators

Request a Quote
Request a Quote
DC voltage output+ (10 mV ~ 1020 V) - (10 mV ~ 10.4 V)
DC current output± (10 μA ~ 10.2 A)
AC voltage output10 mV ~ 1020 V
AC current output10 μA ~ 10.4 A
Sinusoidal wave frequency10 Hz ~ 20 kHz
Simulated DC resistance1 Ω ~ 220 MΩ, continuously adjustable
Pulse frequency output2 MHz
Multifunction Calibrator
