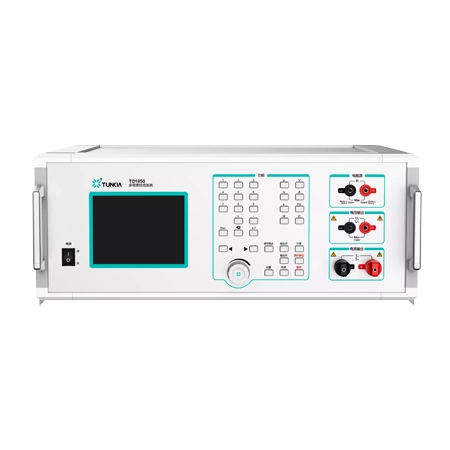

TD1850 Multifunction Calibrator

TD1850 Multifunction Calibrator

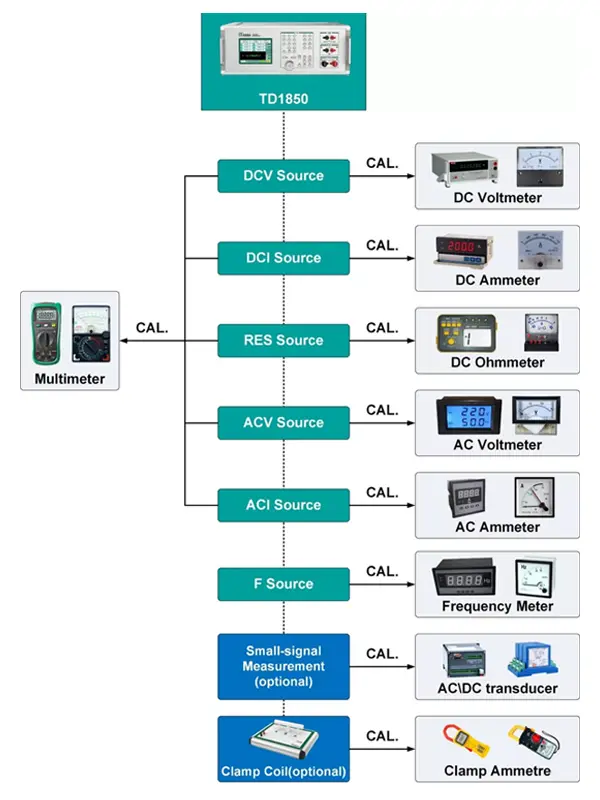

TD1850 is a high-precision, multifunction calibrator. It integrates AC/DC voltage source, AC/DC current source, and DC resistance source functions. It is used for the calibration of 3.5 digit digital multimeters.

Manufacturer: TUNKIA

Origin: China

Category: Multifunction Calibrators

Request a Quote
Request a Quote
DC voltage output20 mV ~ 1100 V
DC current output2 μA ~ 22 A (33 A is optional)
AC voltage output20 mV ~ 1100 V
AC current output200 μA ~ 22 A (33 A is optional)
Sinusoidal wave frequency45 Hz ~ 1100 Hz
Simulated DC resistance10 Ω ~ 220 MΩ, continuously adjustable
Pulse frequency output2 MHz
