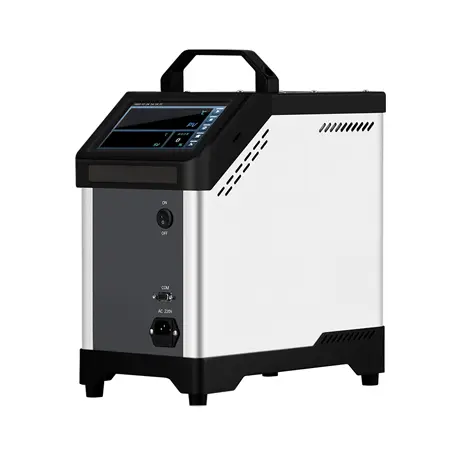

DB-1100HA Thermocouple Calibration Furnace

DB-1100HA Thermocouple Calibration Furnace

DB-1100HA thermocouple calibration furnace allows operation up to +1100 °C, for field and laboratory applications at high temperatures. It is a portable thermocouple calibration furnace designed for manufacturing applications such as steel, aluminum production.

Manufacturer: TKS

Category: Dry Block Calibrators

Request a Quote
Request a Quote
ModelDB-1100HA
Temperature Range+300 °C ... +1100 °C
Display TypeTouch Screen
Display Resolution0.1 °C
Accuracy±2.0 °C (With the adjustable offset, the user can improve accuracy.)
Stability±0.5 °C
Radial Uniformity±1.0 °C
Hole Diameter30 mm
Hole Depth155 mm
Operating Voltage220/230 VAC ± 10% 50/60Hz
Weight8 kg
